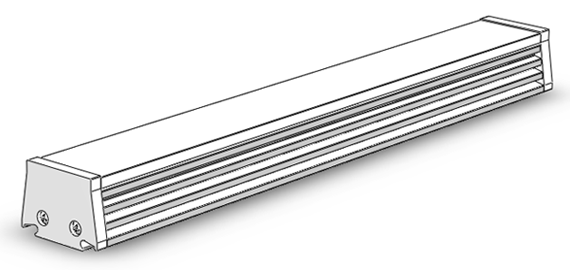

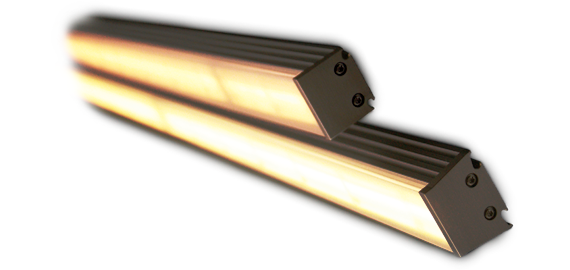

The M109 D is a seamless and fully dimmable linear LED light for high light output applications such as task, primary, counter, art, and cove lighting. It can also be used for accent and fluorescent light replacment. Using the EST light engine the M109 features our patent-pending color temperature changing feature to mimicking the natural warm light that is generated by incandescent light bulbs when dimming. The M109 is extruded out of aircraft grade aluminum resulting in superior heat dissipation and its aesthetically pleasing looks. The length is custom ordered from a continuous 8.6" to 96" at 2" length increments.
Specifications
| M109 D | ||
| Housing | Clear anodized Aluminum | |
| Style | Streight or Tapered Profile | |
| Dimensions | 0.86" x 1.0" x [Custom]" [H x W x L] | |
| Length | Up to 96” in 2” increments (continuous) | |
| Weight | 7.5 oz/ft | |
| Enviroment | Indoor | |
| Mounting | Spring Clip | |
| Light cover | Frosted Polycarbonate Diffuser (Spotless) | |
| Input voltage | Low Voltage, 24 VCD | |
| Power Supply | Energy Savings Technology PCU M109 100W Class II | |
| Wattage | 6 - 10 W/ft | |
| Efficancy | 50 Lm/W | |
| Wire on Light | EST 20/4 gauge, Male Connector | |
| Wire from PCU to Light | EST 20/4 gauge, Female Connector | |
| LED | EST light engine | |
| Color temperature (CCT) | 2700 to 3500 K [Pre/Post Adjustable] | |
| Color Rendering Index (CRI) | 85> typical | |
| Lumen output | 300-500 Lm/ft | |
| Beam angle | Wide / Medium / Narrow | |
| Ligth beam | Soft Edged | |
| Dimming | Seamless & Fully dimmable | |
Benefits
Features
Downloads
Data Sheet (PDF)
- Plug & Play Installation
- Wire length from PS up to 100 feet.
- No variance in color temperature or light output.
- No UV radiation
- Small foot-print
- Full customization
- High efficiency
- Usable for both mood and task lighting.
- Made in USA
Features
- Seamless and fully dimmable.
- Color temperature changing feature when dimming
- Continuous lamp length up to 10 feet.
- Programmable color temperature (CCT) pre and post installation to match decor.
- Wide, Medium, and Narrow beam angle option
